The Guide Bar System: Ensuring Accurate Yarn Guidance in Warp Knitting Machines

1 комплект
MOQ
negotiable
цена
The Guide Bar System: Ensuring Accurate Yarn Guidance in Warp Knitting Machines
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Тип продукта: Машина для изготовления теневой сетки
Цвет: Индивидуальные
Рабочая ширина: 135" - 260"
Скорость: 200-450 оборотов в минуту
Размер: 2m/2.5m/3.4m/3.8m/4.5m/5.5m/6m/6.6m/8.6m/9.6m/11m
Гарантия: 1 год ((пожизненная техническая поддержка)
Выделить:

guide bar system for warp knitting

,

yarn guidance system for knitting machines

,

shade net machine guide bar
Основная информация
Место происхождения: Китай, Цзянсу
Фирменное наименование: Chenye
Сертификация: ISO ,CE, TUV
Номер модели: SRCA
Оплата и доставка Условия
Упаковывая детали: 40HQ/Set
Время доставки: через 60 дней после оплаты депозита
Условия оплаты: Л/К, Т/Т, западное соединение
Поставка способности: 25 комплектов в месяц
Характер продукции

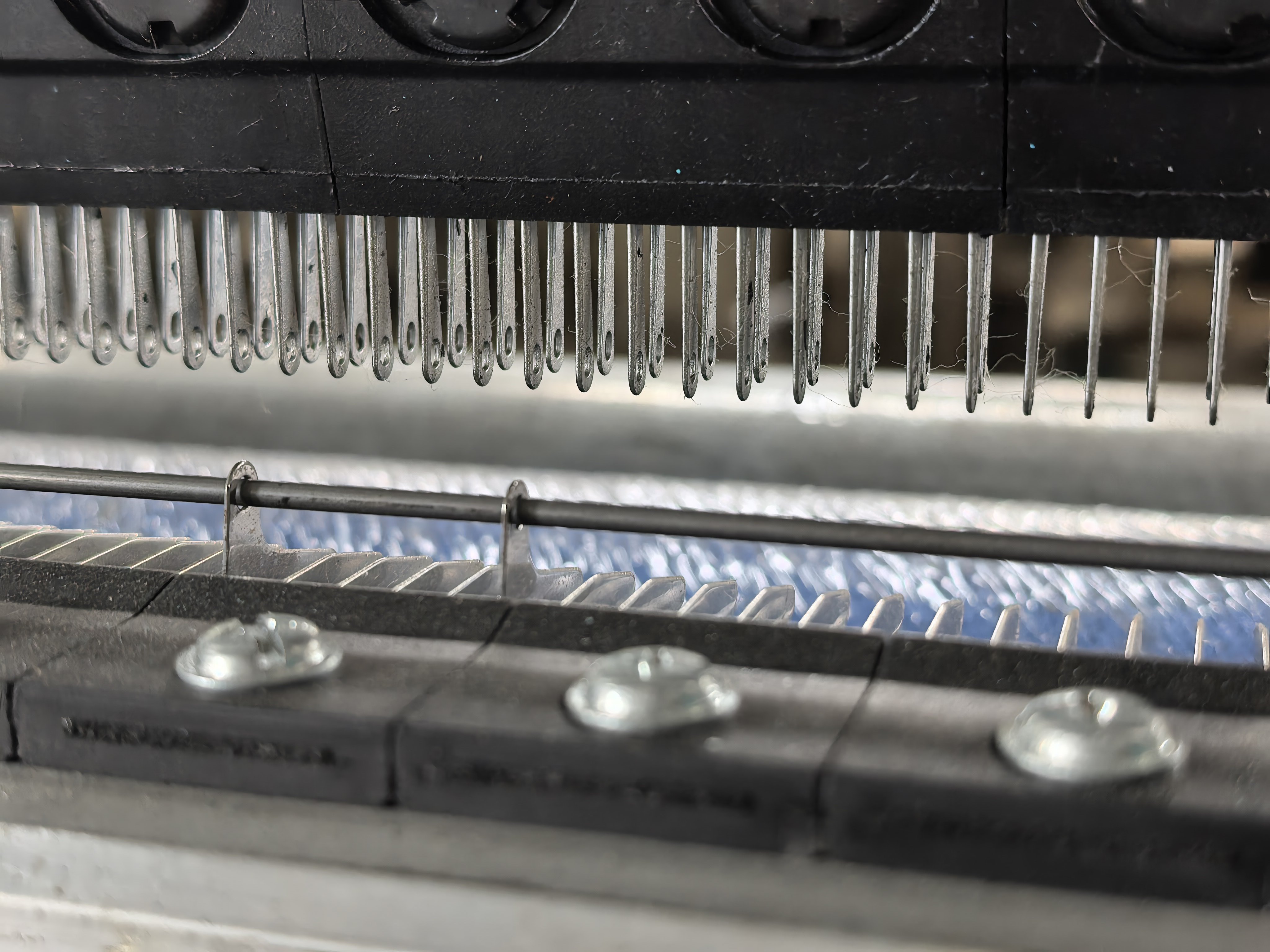

The Guide Bar System: Ensuring Accurate Yarn Guidance in Warp Knitting Machines

In a warp knitting machine, the guide bar system plays a vital role in controlling yarn movement and fabric formation. As one of the most important knitting components, its precision directly affects fabric structure, mesh uniformity, and overall product quality.


The guide bar is responsible for guiding yarns around the needles according to predetermined lapping movements. During operation, multiple guide bars work together to create various fabric structures used in shade nets, bale nets, fishing nets, anti-hail nets, and safety nets.


Accurate guide bar movement is essential for maintaining consistent mesh size and fabric appearance. Even minor deviations can lead to pattern distortion, uneven fabric structures, or reduced product performance.

Machine Parameters
Type Size (L*W*H) Weight (Kg) Power (KW) Speed (rpm)
SRCA-135 4300*2200*2700 4700 3 200-530
SRCA-150 4900*2200*2700 5000 3 200-530
SRCA-180 6100*2200*2700 7500 5.5 200-530
SRCA-220 7300*2200*2700 9000 5.5 200-530
SRCA-260 8200*2200*2700 11000 7.5 200-480
SRCA-340 10300*2200*2700 14000 11 200-450
Applications & Purpose
Shade net machines produce specialized netting material used in agricultural settings, nurseries, gardens, and outdoor areas to create controlled environments with optimal growing conditions.
Primary Benefits:
  • Sunlight Protection: Reduces sunlight intensity to prevent overheating and create favorable microclimates
  • Temperature Control: Maintains lower temperatures by filtering sunlight for plant, animal, and human comfort
  • Wind and Dust Barrier: Acts as windbreak to reduce wind speed and prevent dust in sensitive areas
Technical Support & Services
We provide comprehensive technical support and service for our Shading Net Making Machine to ensure optimal performance and longevity.

The Guide Bar System: Ensuring Accurate Yarn Guidance in Warp Knitting Machines 0

Packing & Shipping
We ensure complete safety and security of all goods during packing and shipping processes.
Secure machine packaging Shipping preparation
Frequently Asked Questions
What is the output of shading net making machine?
Depending on machine working width and net technical specifications, output is approximately 500-1000KG/24h.
How much space needed to set up a shading net production line?
A small-scale production line requires 100-200 square meters, while larger operations may need several thousand square meters for machinery, raw materials, and finished products storage.
How many kinds of shading net can be produced by rascheal warp knitting machine?
Four types of shade nets can be produced: mono+mono yarn shading net, mono+flat yarn shading net, mono+flat yarn shade net, and Al+pet yarn shade net.
Are the machines customizable for different net specifications?
Yes, modern shading net making machines are customizable to produce nets of various sizes, mesh configurations, and materials with adjustable machine settings.
What types of shading nets material can be made with these machines?
Primary material is HDPE, with some shading nets using AL and PET materials.
Are there any special skills required to operate the machine?
Operating requires training for optimal performance. We provide comprehensive training sessions and manuals covering setup, operation, and maintenance procedures.
